- Place of Origin: hebei
- Brand Name: SanYu
- Model Number: Complete varieties
Remarks:

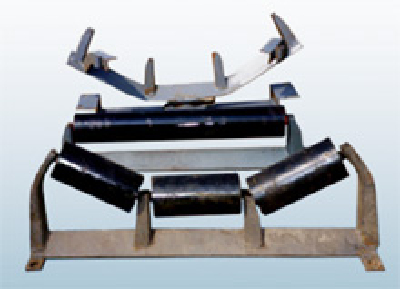

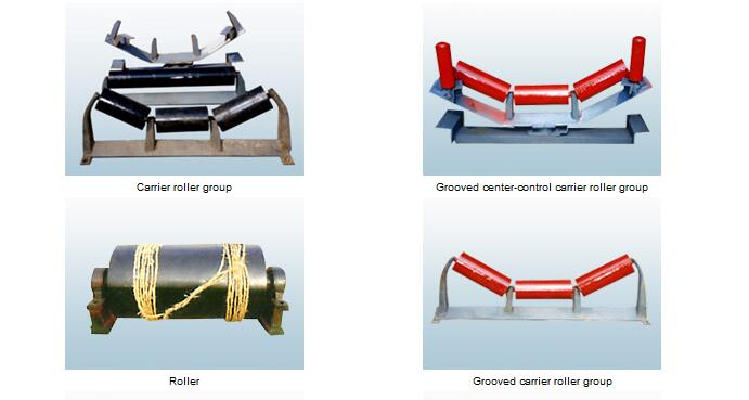

Conveyance capacity Qv value depends on level convey with angle θ of moving accumulation is 20° while groove angle λ of carrier roller is 30°.
Belt speed (4.5) and (5.6) m/s is not recommended usually because it is a nonstandard value.
DJ inclined belt conveyer with undulance sides is applied for conveying bulk material which adopts belt with undulance sides and diaphragm plate. Therefore this kind of belt is very suitable for conveying material in condition of big angle (maximum angle 90°)continuously.
We produce three kind of belt including B500, B650 and B800 currently. Accumulation density of conveyance material should be 0.5-2.5t/m3 and working environment can be from -19℃ to 40℃.
Conveyer belt with special sides should be used if convey material of high-temperature, acid and alkali, oily or organic solvent.
- Place of Origin: hebei
- Brand Name: SanYu
- Model Number: Complete varieties
| Technical parameter of TD75 belt conveyer |
V speed (m/s) | Width of belt (mm) | |||||
500 | 650 | 800 | 1000 | 1200 | 1400 | |
Productivity (T/H) | ||||||
0.8 | 78 | 131 | - | - | - | - |
1.0 | 97 | 164 | 278 | 435 | 655 | 891 |
1.25 | 122 | 206 | 348 | 544 | 819 | 1115 |
1.6 | 156 | 264 | 445 | 696 | 1048 | 1427 |
2.0 | 191 | 323 | 546 | 835 | 1284 | 1748 |
2.5 | 232 | 391 | 661 | 1033 | 1556 | 2118 |
3.15 | - | - | 824 | 1233 | 1858 | 2528 |
4.0 | - | - | - | - | 2202 | 2996 |
Mail technical parameter of DJ belt conveyer:
Width of belt (mm) | 500 | 650 | 800 | |||||||||||||||||
Highness of sides (mm) | 80 | 100 | 125 | 100 | 125 | 160 | 125 | 160 | 200 | |||||||||||
Spacing between diaphragm plates (mm) | 126 | 252 | 126 | 252 | 252 | 378 | 126 | 252 | 252 | 378 | 252 | 378 | 252 | 378 | 252 | 378 | 252 | 378 | ||
Conveying value | Angle | 30° | 35 | 19 | 52 | 31 | 46 | 31 | 75 | 44 | 66 | 86 | 86 | 60 | 86 | 57 | 117 | 82 | 172 | 134 |
35° | 32 | 16 | 49 | 27 | 40 | 27 | 70 | 38 | 78 | 52 | 78 | 52 | 75 | 50 | 106 | 71 | 160 | 118 | ||
40° | 28 | 14 | 45 | 24 | 35 | 23 | 65 | 34 | 69 | 46 | 69 | 46 | 66 | 44 | 94 | 63 | 149 | 104 | ||
45° | 25 | 13 | 41 | 21 | 31 | 21 | 59 | 30 | 62 | 41 | 62 | 41 | 59 | 39 | 84 | 56 | 137 | 92 | ||
50° | 23 | 11 | 38 | 19 | 28 | 19 | 54 | 27 | 40 | 27 | 56 | 37 | 53 | 35 | 75 | 50 | 125 | 83 | ||
Speed (m/s) | 0.8、1.0、1.25、1.6、2.0 | 0.8、1.0、1.25、1.6、2.0 | 0.8、1.0、1.25、1.6、2.0、2.5 | |||||||||||||||||
Power (KW) | 1.5、2.2、3.0 4.0、5.5、7.5 | 1.5、2.2、3.0、4.0、 5.5、7.5、11、15 | 2.2、3.0、4.0、5.5、7.5、 11、15 、18.5、22 | |||||||||||||||||
