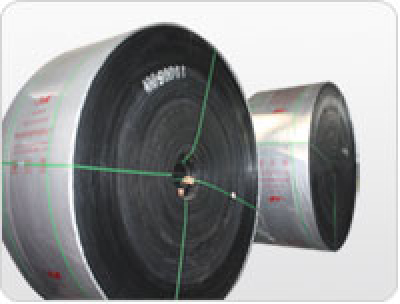

General Conveyer Belt

General Conveyer Belt

  • Min.Order Quantity: 10
  • Supply Ability: 1000 per Month
  • Port: Chinese port
  • Payment Terms: L/C,D/A,D/P,T/T,Other
Get Latest Price:
  • *Quantity: Meter
| Factory
Experience:1998-08-26
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  hebei
  • Brand Name:  SanYu
  • Model Number:  Full range

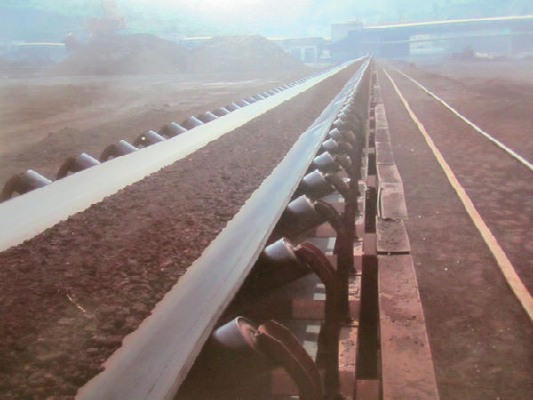

Application
General conveyor belt is widely used in the metallurgy, building materials, electric power, port, Cement, Fertilizer,mineral mountain, agriculature, etc. Which is suitable for transporting normal temperature non-corrosiveness bulk, granular, powder supplies in general conditions.
Features
1.Natural rubber Thin belt body with high strength, light weight;
2.Anti-abrasive, impact resistant, corrosion resistant;
3.Softy belt body, good flexibility, excellent trough;
4.
Vulcanization molding;
5.Long service life.

  • Place of Origin:  hebei
  • Brand Name:  SanYu
  • Model Number:  Full range

                       1.Physical and mechanical property of cover layer:

Property level of cover layer

Tensile strength≥

Tensile yield≥

Abrasion value≤


Mpa

%

mm3

H

24.0

450

120

D

18.0

400

100

L

15.0

350

200


2.Tensile property of through thickness:
a. The longitudinal tensile strength is not lower than the following nominal value: 160 200 250 315 400
b. The through thickness elongation rate of the belt should not less than elongation rate of trough thickness of the belt should no more than 4%,
c. Straightness: no more than 25mm.
d. plunger bond stength:

Index description

Strength between layers≥

Cover layer and fabric layer



Thickness of cover layer≤1.5mm

Thickness of cover layer >1.5mm

Sample average value

3.2N/mm

2.1N/mm

2.7N/mm
