Application

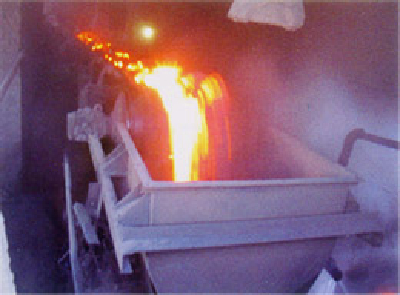

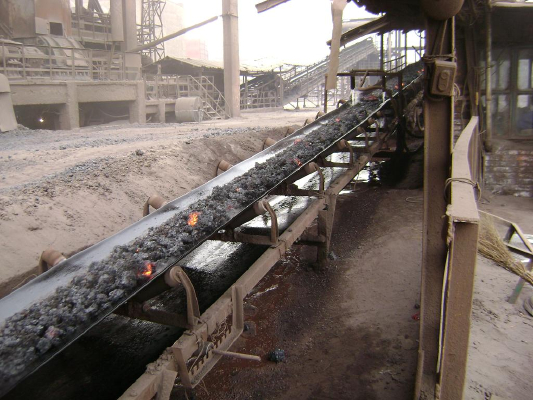

Heat resistant conveyer belt is mainly used to transport high temperature materials, such as sintering ore.hot coke, clinker, hat casting, etc.
Structure
EPDM or SBR as the covering layer rubber, and high modulus low shrinkage polyester or nylon canvas as the strong casing ply. This kind of belt can use the heat resistant woven glass fabric between the cover rubber and the layers to improve the working life of the belt.
Types
We can make it into endless conveyor belt as clients’ requirements.
Note:
T1:Could be resistant less than 100℃ test temperature.
T2:Could be resistant less than 125℃ test temperature.
T3:Could be resistant less than 150℃ test temperature.
T4:Could be resistant less than 175℃ test temperature.
- Place of Origin: hebei
- Brand Name: SanYu
- Model Number: Full range
The physical and mechanical properties of the heat resistant covering layer after tested should be in accordance with the following table:
| Project | The type | ||||
| T1 | T2 | T3 | T4 | ||
| Change the range | |||||
| Hardness | Draw the intensity | 20 | 20 | 20 | 20 |
| Maximum after wearing out | 85 | ||||
| Draw the intensity | The minimum value Mpa after wearing out | 12 | 10 | 5 | 5 |
| Performance rate of change /% | -25 | -30 | -40 | -40 | |
| Break person who extend | Performance rate of change /% | -50 | -50 | -55 | -55 |
| After aging rate of change /% | 200 | 200 | 180 | 180 | |
