Product Details
- Place of Origin: hebei
- Brand Name: SanYu
- Model Number: Full range
Application

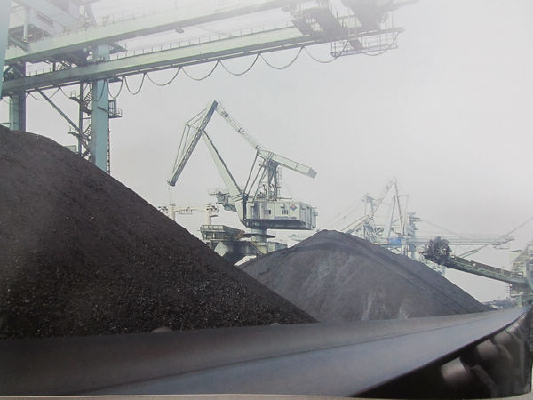

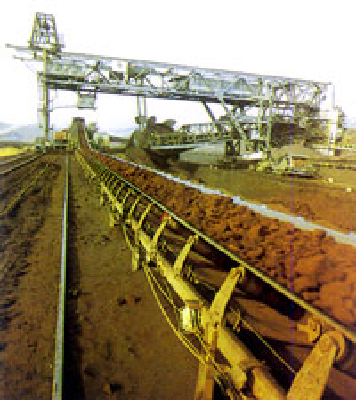

EP/NN conveyor belts are compatible with long distance conveying with high load, speed and impact. These conveyor belt are mainly used in diverse industries for material handling applications. Such as mining, power, transportation, metallurgy, machinery, logistics, agriculture and other fields.
Features
1.Excellent elasticity;
2.High adhesion, good flexibility and trough ability;
3.Anti-impact.
Strength specifications of EP/NN convas: 100N/mm 125N/mm 150N/mm 200N/mm 250N/mm 300N/mm 400N/mm etc.
The physical and mechanical properties of nylon conveyer belt and EP conveyer belt are as following:
1. The physical and mechanical properties of coverffig layer: please refer to the physical and mechanical properties of the common conveyer belt.
2. Tensile property of through thickness:
a. The longitudinal tensile strength is not lower than the following nominal value:
315 400 500 600 630 8OO 9OO 1000N/mm
b. The total thickness elongation rate of the belt should not less than 10%, the reference force elongation rate of total thickness should no more than 4%.
c. Straightness: no more than 25mm.
d. plunger bond strength:
EP/NN conveyor belts are compatible with long distance conveying with high load, speed and impact. These conveyor belt are mainly used in diverse industries for material handling applications. Such as mining, power, transportation, metallurgy, machinery, logistics, agriculture and other fields.
Features
1.Excellent elasticity;
2.High adhesion, good flexibility and trough ability;
3.Anti-impact.
Strength specifications of EP/NN convas: 100N/mm 125N/mm 150N/mm 200N/mm 250N/mm 300N/mm 400N/mm etc.
The physical and mechanical properties of nylon conveyer belt and EP conveyer belt are as following:
1. The physical and mechanical properties of coverffig layer: please refer to the physical and mechanical properties of the common conveyer belt.
2. Tensile property of through thickness:
a. The longitudinal tensile strength is not lower than the following nominal value:
315 400 500 600 630 8OO 9OO 1000N/mm
b. The total thickness elongation rate of the belt should not less than 10%, the reference force elongation rate of total thickness should no more than 4%.
c. Straightness: no more than 25mm.
d. plunger bond strength:
- Place of Origin: hebei
- Brand Name: SanYu
- Model Number: Full range
Index Description
Strength between layers | Cover layer and fabric layer | ||
Thickness of cover layer≤1.5mm | Thickness of cover layer >1.5mm | ||
Sample average value | 4.5N/mm | 3.2N/mm | 3.5N/mm |
