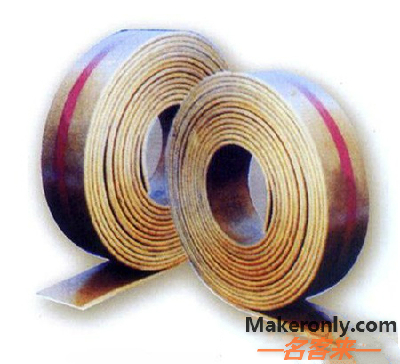

Rubber lifting belt is multi-layer silica gel fabric folded with cover rubber outside the belt core. It can be classified in heat-resistant lifting belt and common lifting belt as per application temperature while can be classified in full-cotton, Dacron and cotton, nylon and EP lifting belt as per core material.
1.Physical properties and level of cover rubber.
It can be divided as type D for heavy-wear, type L for middle-wear and type T for high-temperature material conveyance as per wear and load of material.
2.Wide specification of lifting belt: 150 200 250 300 350 400 500 600mm etc.
3.Technical requirement of lifting belt.
- Size: 1
- Place of Origin: hebei
- Brand Name: SanYu
- Model Number: Full range
- Weight: 1.000 kg
Item | Index | ||
Type D | Type L | ||
Tensile strength Mpa≥ | 18.0 | 15.0 | |
Tensile yield %≥ | 400 | 350 | |
Hot-air aging | Tensile strength variation% | -25-25 | |
70℃x7d | Tensile yield variation% | ||
Abrasion value cm3 | 0.7 | 0.8 | |
Remarks:Physical property of cover rubber will depend on if lift special material or acute wear material. 1.Cover rubber property of heat-resistant belt (T type) should accord with HG/T2297 (heat-resistant belt) standard. 2.Longitudinal tensile strength of belt should not lower than nominal value below: 100/ 125 /160/ 200 /250/ 315/ 400 /500N/mm . 3.Tensile yield of belt longitudinal thickness should not lower than 10% and reference elongation should not more than 4%. 4.Bond strength between layers of lifting belt with fabric core is listed as below: N/mm. |
Fabric class and item | Between layers | Between cover and cloth layer | ||
Thickness of cover | Thickness of cover | |||
100% Nylon fabric | Average of longitudinal test≥ | 5.25 | 3.15 | 4.50 |
Minimum of longitudinal test≥ | 3.85 | 2.40 | 2.85 | |
100% other synthetic fabrics | Average of longitudinal test≥ | 4.50 | 3.15 | 3.50 |
Minimum of longitudinal test≥ | 3.85 | 2.40 | 2.85 | |
Cotton canvas | Average of longitudinal test≥ | 3.00 | 2.20 | 2.60 |
Minimum of longitudinal test≥ | 1.95 | 1.60 | 1.95 | |
Other natural fabric | Average of longitudinal test≥ | 3.15 | 2.35 | 2.80 |
Minimum of longitudinal test≥ | 2.70 | 1.60 | 2.20 | |
Remarks:Bond strength between layers of heat-resistant conveyer belt with fabric core should accord with HG/T2297 standard.
