Structure

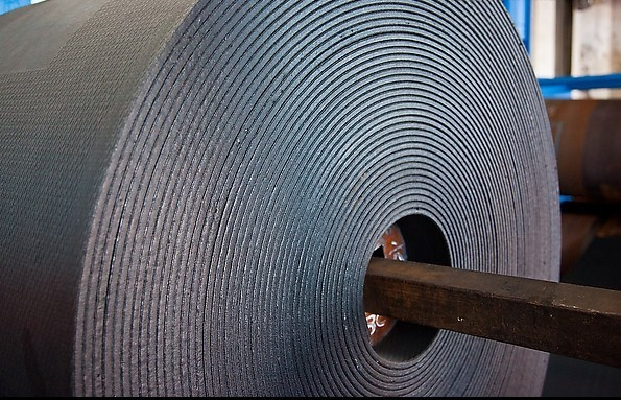

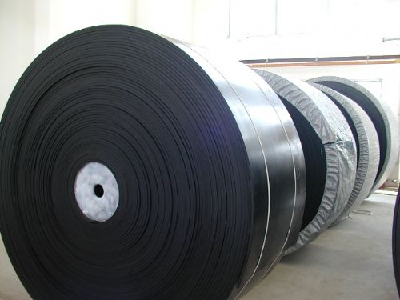

It is made from the whole core via dipping and plastifying in polyvinyl chloride(pvc) dipping agent or sulfuration. Besides that, it is fire retardant, ant-static, shock resistant, abrasion resistant and corrosion resistant.
Application
It is mainly applicable for the underground well haulage of coal mines, and also the conveyance of materials for metallurgical and chemical industries. it features largely in the high strength, large freight volume and stable conveyance performance.
Type
This kind of conveyor belt is divided into two types: PVC and PVG.
PVC type conveyor belt’s top and bottom layers are PVC coating cover, Single-sided tape thickness ≥1.0mm, inclined angel:＜16°.
PVG type conveyor belt’s upper and lower layers are nitrile rubber and PVC, which have the feature of TPE. single-sided tape thickness: 1.5mm-4.5mm, inclined angel:＜20°
- Place of Origin: hebei
- Brand Name: SanYu
- Model Number: PVC and PVG
Type and technical parameter of PVC conveyer belt:
Standard MT914-2008 | Safety factor 10(Breaking strength*1/10) | |||||
The Slope <16℃ | ||||||
Standard type | Degree | Breaking strength≥,N/mm | Tensile yield≥,% | Advising Mindiameter of Transmission Drum | ||
Longitudinal | Transverse | Longitudinal | Transverse | |||
680S | 4th | 680 | 265 | 15 | 18 | 320 |
800S | 5th | 800 | 280 | 400 | ||
1000S | 6th | 1000 | 300 | 500 | ||
1250S | 7th | 1250 | 350 | 500 | ||
1400S | 8th | 1400 | 350 | 630 | ||
| 1600S | 8th | 1600 | 400 | |||
| 750 |
Type and technical parameter of PVG conveyer belt:
Standard MT914-2008 BS3289 HG2805 | Safety factor 10(Breaking strength*1/10) | |||||
Standard type | Degree | The slope <20℃ | Recommend minimum roller diameter | |||
Breaking strength≥,N/mm | Tensile yield≥,% | |||||
Longitudinal | Transverse | Longitudinal | Transverse | |||
680S | 4th | 680 | 265 | 15 | 18 | 400 |
800S | 5th | 800 | 280 | 500 | ||
1000S | 6th | 1000 | 300 | 630 | ||
1250S | 7th | 1250 | 350 | 750 | ||
1400S | 8th | 1400 | 350 | 750 | ||
| 1600s | 9th | 1600 | 400 | |||
| 750 |
Safe function:
| Function Name | The alcohol combustion | The propane combustion | Electrical conductivity | The roller rub |
| Standard value | Average value≤3S,List value≤10S(Have no cover gum) | a)≥600 | ≤3X108Ω | ≤325℃ |
| Average value≤5S,List value≤15S(Have no cover gum) | b)≥50mm;≤140℃≤1250mm |
